Ceiling formwork BudoSTROP

Szalunki stropowe BudoSTROP - sprzedaż i wynajem
Szalunki stropowe na sprzedaż i wynajem | budosprzet.pl

BudoSTROP – universal traditional support system allows formwork to be well matched to the formed object. The system also allows for the support of binding joists and is compatible with SMP8 and BT100 tower support systems. Thanks to the small number of elements that come into the system, its assembly and disassembly is quick and easy.

Application of BudoSTROP ceiling formwork

Ceiling formwork allows for the construction of:

  • reinforced concrete ceiling supports,
  • precast ceiling supports,
  • joists.

Thanks to its simple components, it is possible to form ceilings of any shape.

System parameters

Weight per m2 of formwork: approximately 38kg.

H-20 girder length sizes: 110, 130, 150, 180, 210, 245, 265, 290, 330, 360, 390, 420 , 450 , 490, 590cm.

20kN support length sizes:
DB80 (50-80cm),
DB130 (80-130cm),
DB180 (110-180cm),
DB260 (150-260cm),
DB300 (170-300cm),
DB350 (190-350cm),
DB410 (230-410cm),
DB500 (280-500cm),
DB550 (300-550cm).

12kN support length sizes:
360 (200-360cm).

10kN support length sizes:
360 (200-360cm).

System advantages

The system offers a number of benefits:

  • the ability to adapt easily even to complex shapes,
  • the ability to configure parameters depending on the components used,
  • high load-bearing capacity of the components,
  • components made from high-quality materials,
  • a relatively simple system for assembly and dismantling.

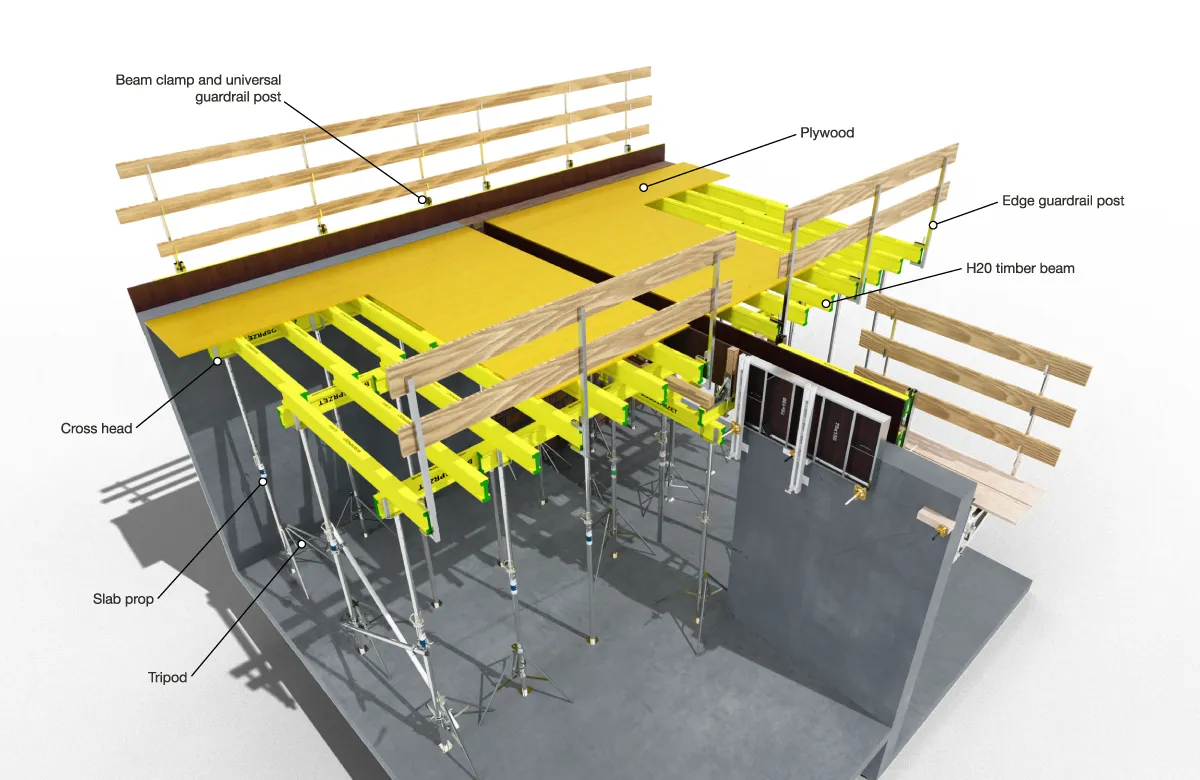

System elements

  • DB ceiling support with minimum capacity of 20kN,
  • H-20 timber ceiling girder,
  • support head,
  • intermediate support head,
  • three-layer plywood with a thickness of 21mm,
  • three-layer panel with or without hardware with a thickness of 21mm,
  • three-legged stand for support,
  • joist lock.
