BudoSŁUP

Universal formwork system for the construction of columns with square and rectangular cross-sections. Adjustment increments of 5cm. BudoSŁUP is the cheapest solution for constructing poles up to 3m high. The folded system takes up little space and is very lightweight. The weight of one set with vertical props is about 190kg.

SYSTEM PARAMETERS

Maximum concreting height: 3m
Permissible concrete pressure: up to 40kN/m2
Sizes: poles between 15 and 45cm can be made

SYSTEM ADVANTAGES

  • European manufacturers: high quality and durable components
  • formwork cheaper than standard wall formwork
  • relatively lightweight: can be set manually
  • versatility for column widths

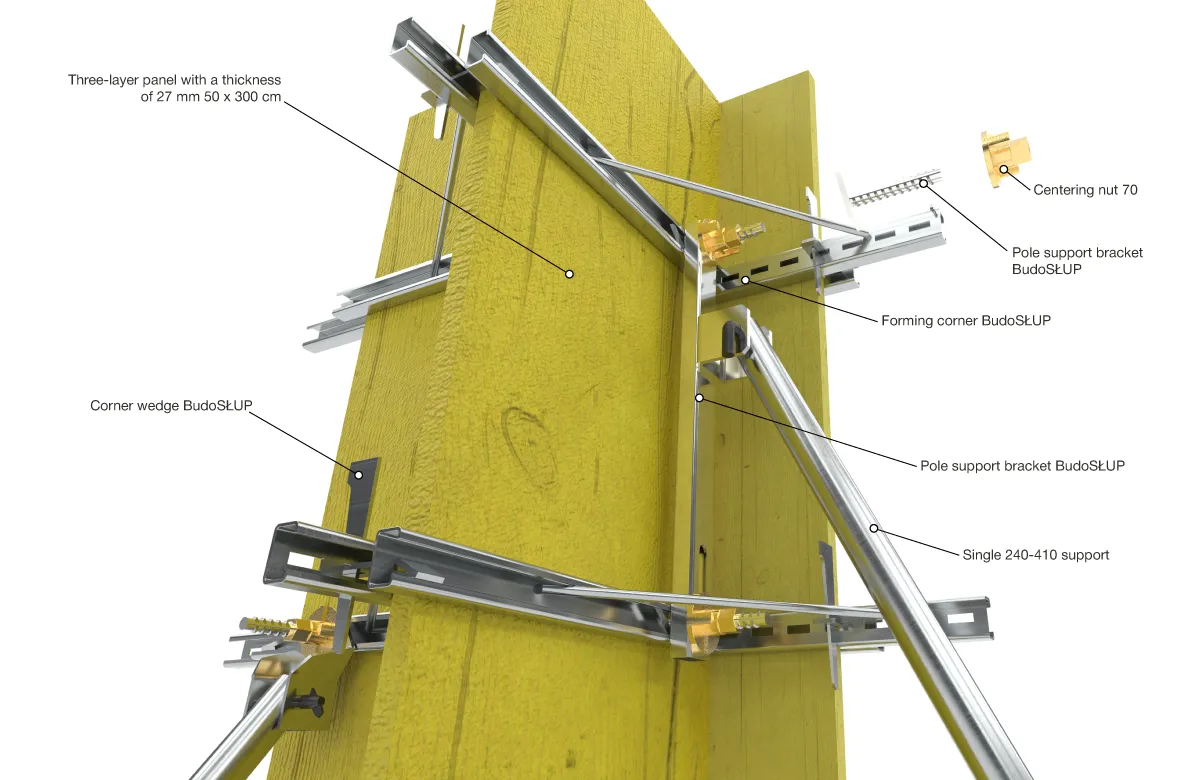

SYSTEM ELEMENTS

  • three-layer panel with a thickness of 27mm 50x300cm
  • BS forming corner
  • BudoSŁUP corner wedge
  • BS pole support bracket
  • BS support connector
  • Single 240-410 support
  • centering nut 70
