The BudoUNI formwork system is a lightweight and versatile wall formwork system that can be used for concrete work in both vertical and horizontal positions. Thanks to its compact dimensions, its versatility allows it to be adapted to structures of various sizes – both in height and width.



What are the key features of BudoUNI compact formwork?

BudoUNI small-scale formwork is one of the lightest available on the market; the heaviest panel (90x150UN) weighs around 45kg, which allows a complete formwork assembly to be erected without the use of a crane. The panels’ lightness and versatility allow for the casting of concrete, ranging from the smallest structures right through to complex forms on large construction sites. The improvements introduced significantly outperform other lightweight formwork systems in terms of functionality.

The steel frame, made from perforated flat bar 8cm wide and 5mm thick, is hot-dip galvanised and filled with 12mm thick plywood (birch plywood coated with a phenolic film weighing 220g/cm²) complying with the DIN 68705-3:1981-12 standard. The internal flat bars are interlocked, which reinforces the panel’s structure and prevents the formwork from cracking.



Application of the BudoUNI wall formwork

The BudoUNI system is well-suited to a wide range of projects, as it enables the construction of elements of various shapes and dimensions. It is ideal for constructing:

  • foundation walls and footings,
  • load-bearing walls,
  • rectangular and square columns,
  • joists, beams and girders,
  • lift shafts,
  • arched walls,
  • other concrete and reinforced concrete elements.

System parameters

Maximum concreting height: 3m.
Permissible concrete pressure: up to 40kN/m2.
Weight per m2 of formwork: approximately 35kg.

Dimensions:
Height: 90, 120, 150cm.
Width: 20, 25, 30, 40, 45, 50, 60, 60UN, 75, 90, 90UN cm.

System advantages

The greatest advantage of BudoUNI over other solutions is its ease of use and high functionality. The system stands out for:

  • corrosion resistance,
  • low weight,
  • compact panels,
  • manual assembly,
  • panel widths in 5–15 cm increments,
  • the ability to construct columns of any size using standard panels typically used for wall formwork,
  • lightweight clamping connectors.

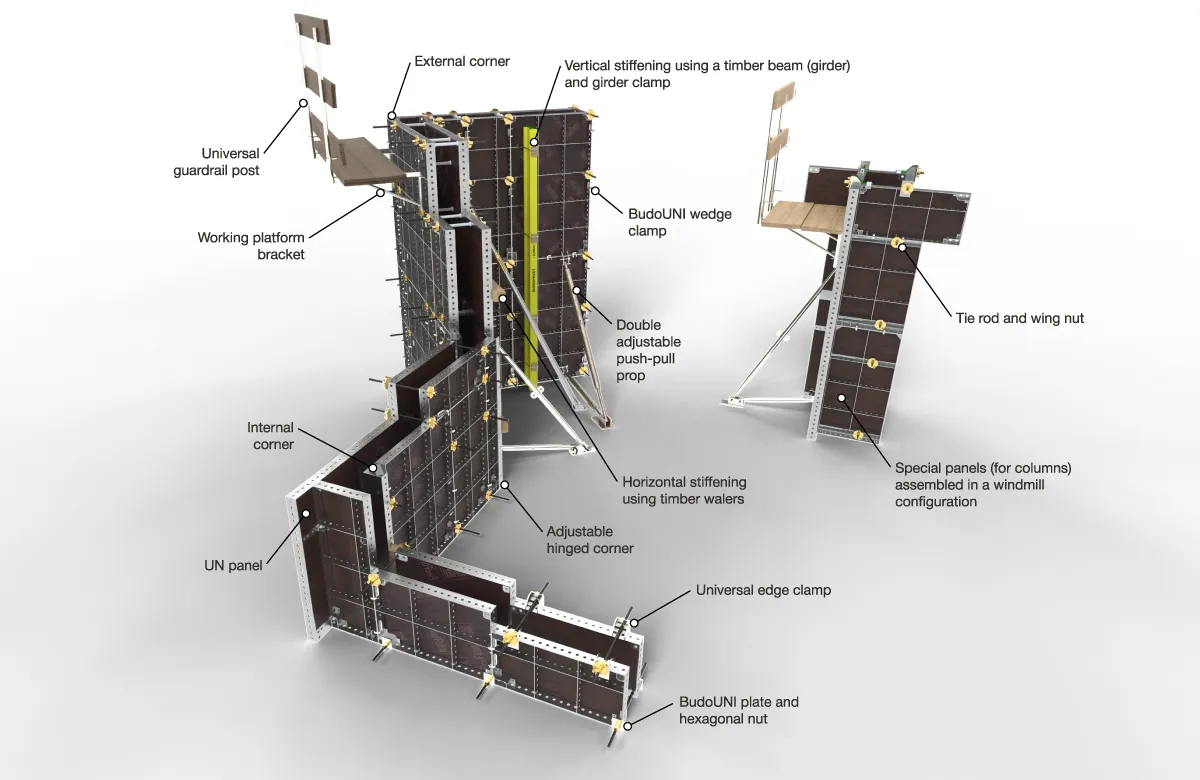

System elements

Formwork panels and corners:
  • standard/universal formwork panel
  • inner corner
  • outer corner
  • hinged corner
  • matching corner
Protective elements:
  • working platform support
  • working platform post
Additional elements:
  • H20 girder clamp
  • squared timber clamp
  • edge catch
  • vertical prop
  • single high support
  • support head
  • support foot
  • transport sling
Formwork connecting elements:
  • clamping connector
  • sworzeń napinający
  • tensioning pin
  • double pin
  • pin wedge
  • DW15 tie rod
  • centering disc nut
  • toggle nut
  • hexagonal nut
  • plate
