Support towers BT100

BT100 towers are free-standing support towers with infinitely variable height adjustment. This feature means the towers can be erected quickly, which significantly reduces the overall time taken for erecting and dismantling the towers, as well as the final cost of the service. Any height combination can be assembled using 50 cm high bracing frames. The bracing frames are joined by slotting them together, without the need for additional connectors.

The use of all BT100 braces and the BT100 transport securing system on adjustable bases allows the tower to be moved as a single unit. The assembly and dismantling of BT100 support towers can be carried out in an upright position (without the use of a crane) or in a horizontal position.

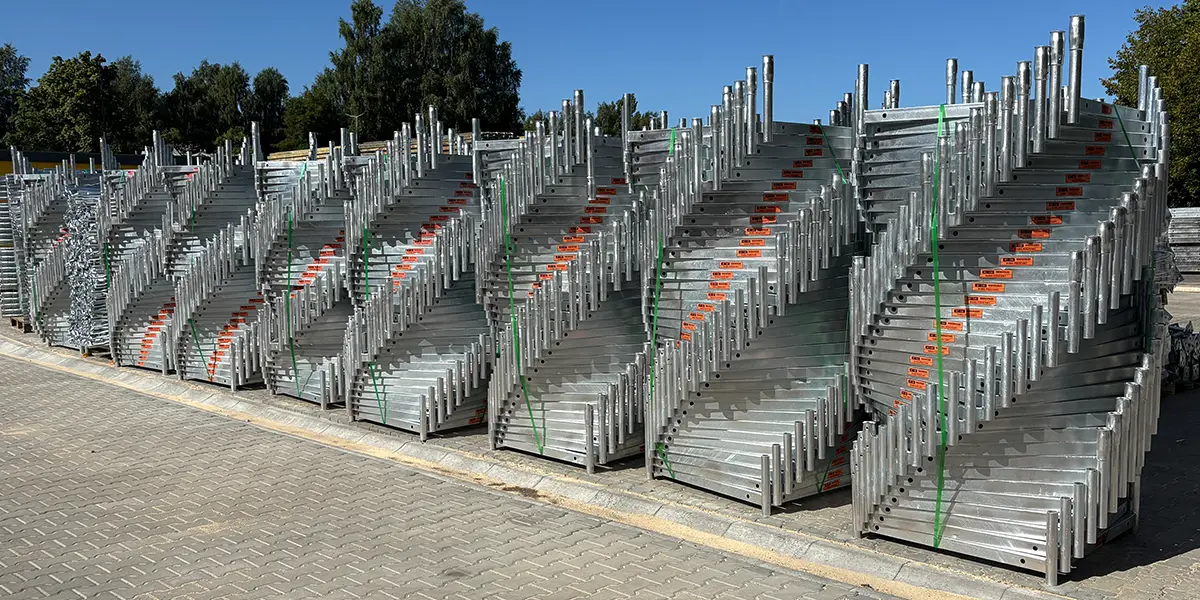

BT100 towers are also easy to transport due to their design and the ability to pack them compactly – the bracing frames are H-shaped. All components of the BT100 towers are galvanised and resistant to external factors.

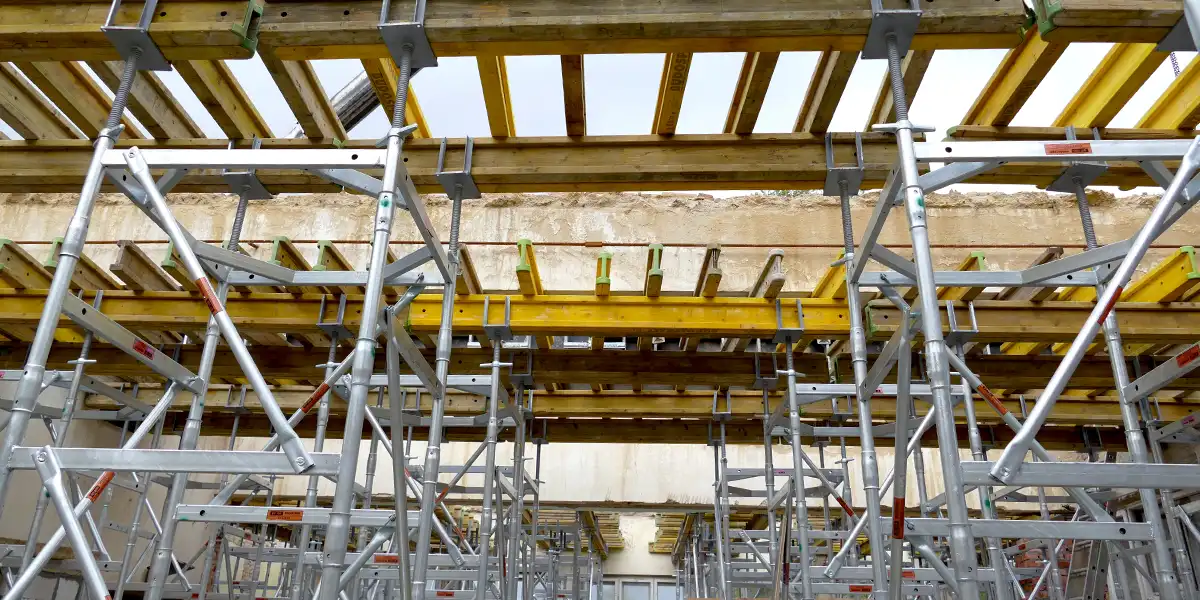

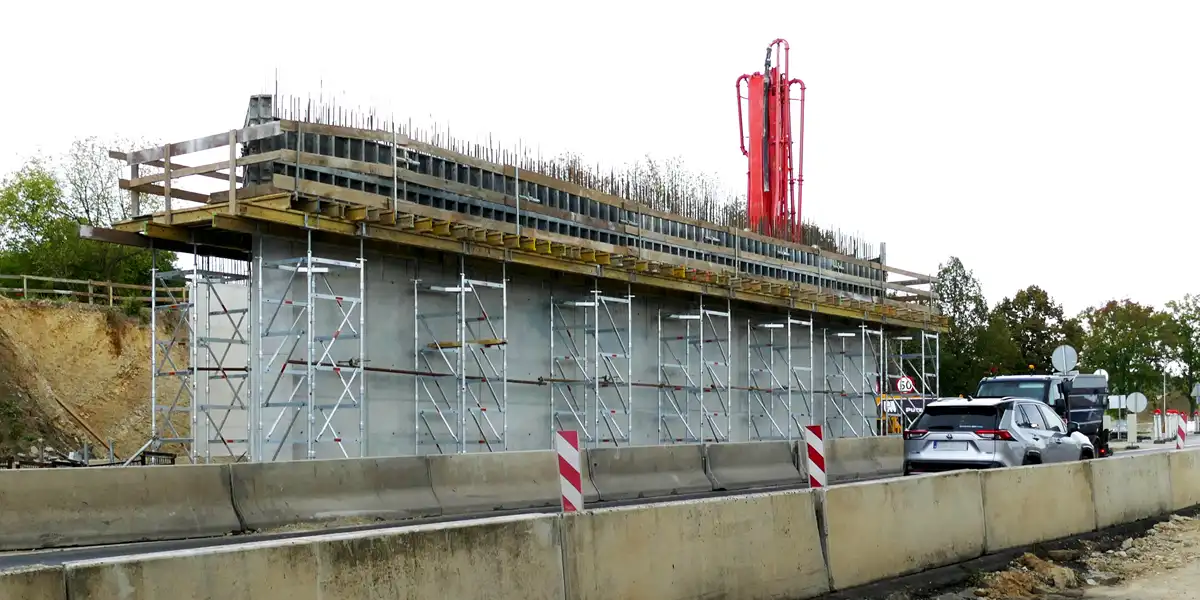

Owing to its high load-bearing capacity (up to 200 kN per tower), the system is used in residential and civil engineering construction.



System parameters

Maximum load: up to 50kN per stand (200kN per tower).
Dimensions of the towers in plan view: 100x100cm.
Segment height: 50cm.

Advantages of the BT100 system

  • a small number of components (6 system components),
  • assembly of vertical components by slotting them into sockets without pins or bolts,
  • easy assembly of diagonal bracing thanks to integrated hooks,
  • a fixed base frame at the bottom and top of the tower to ensure the structure’s stability,
  • easy height adjustment using a single 50 cm high frame,
  • smooth height adjustment,
  • horizontal and vertical assembly of the tower,
  • the entire tower can be moved,
  • hot-dip galvanised tower components,
  • high load-bearing capacity of the tower,
  • compact and ergonomic transport.

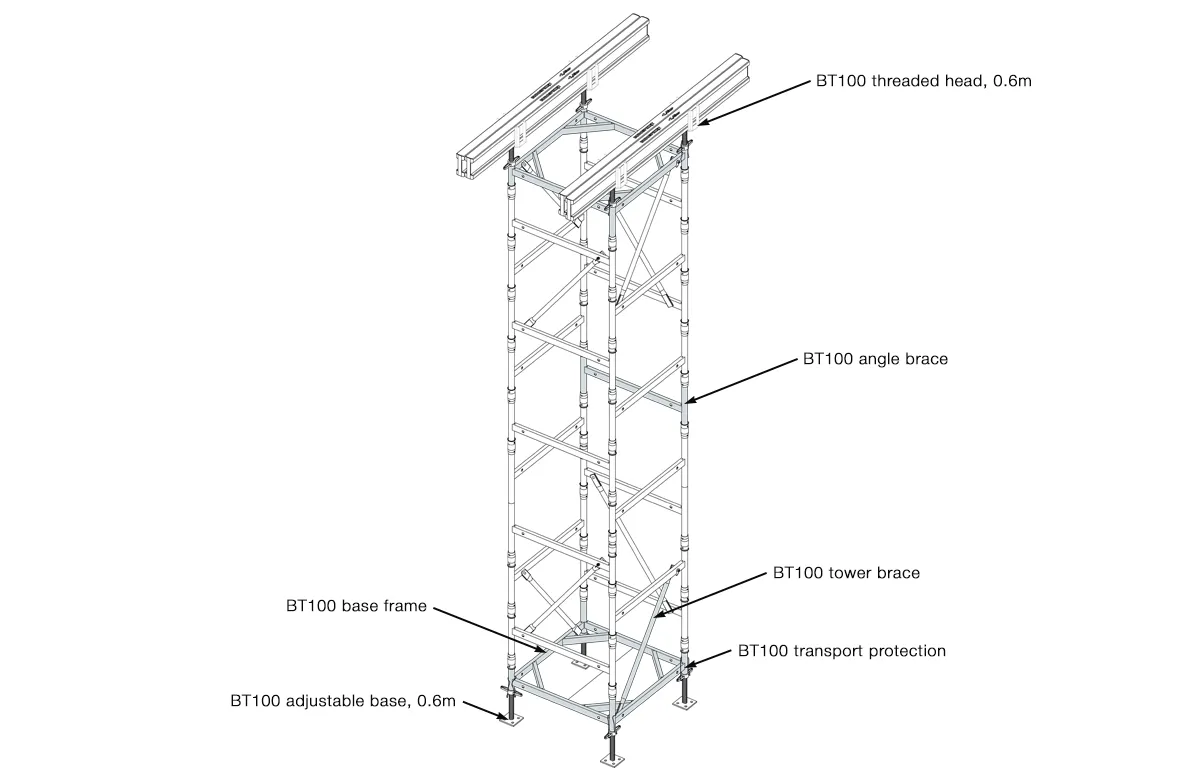

System elements

  • BT100 base frame,
  • BT100 angle brace,
  • BT100 tower brace,
  • BT100 threaded head, 0.6m,
  • BT100 adjustable base, 0.6m,
  • BT100 transport protection (foot protection when moving the unit as a whole).
