Cantilever system BudoTECH

BudoTECH is a system based on steel beams with paired 2xC100 channels and additional elements to create spatial frame structures.

Using the system’s components, it is possible to create, amongst other things:

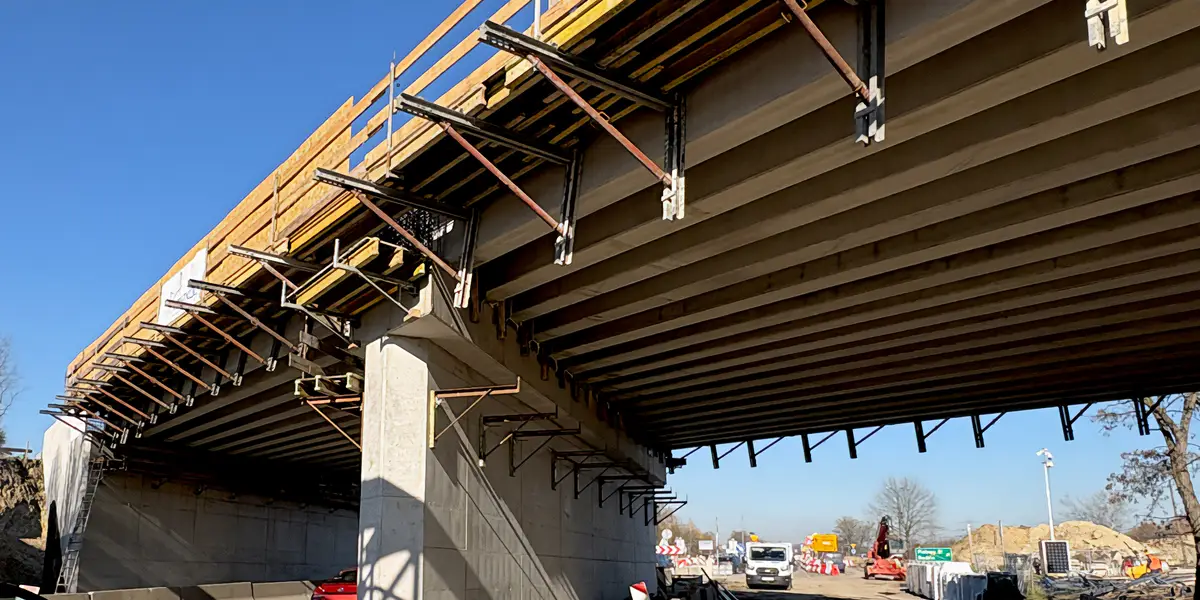

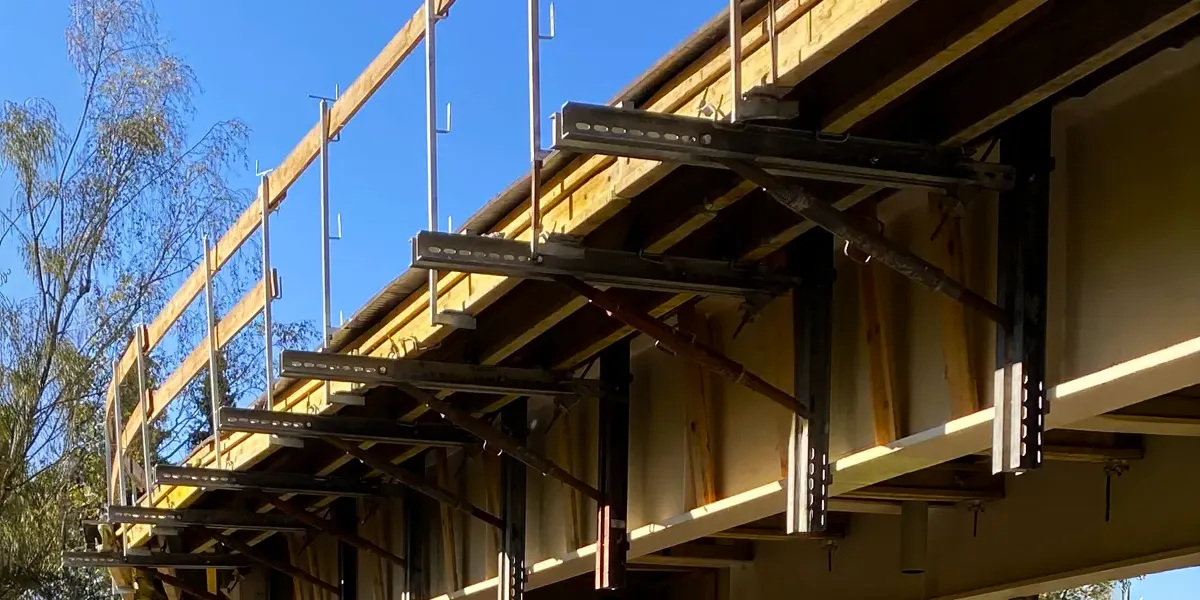

  • supports for reinforced concrete bridge cantilevers in load-bearing structures,
  • suspension systems for existing structures (renovations),
  • brackets for access routes on engineering structures,
  • small support trestles for single-sided formwork,
  • reinforcements for the corners of system formwork,
  • customised girder formwork.

Thanks to its versatility, the BudoTECH system can be used in conjunction with other ceiling and wall systems, thereby broadening their range of applications.

System parameters

Sizes:
Length of transoms: 96, 121, 146, 171, 196, 221, 246 cm.
Length of supports: od 50 do 600 cm.

Connectors: tensioners, wedges, bearing mountings, straight and angle connectors, universal hooks, scaffolding adapters.
Pivots: Ø16.
Bolts: M16.

System advantages

  • cost-effective construction of buildings using a small number of system components,
  • components designed to carry small and medium loads,
  • can be combined with other systems, e.g. H20 beams, ceiling supports,
  • transoms of different lengths,
  • adapters and connectors to adapt the system to the required geometry of the object,
  • all components are made of hot-dip galvanised steel.

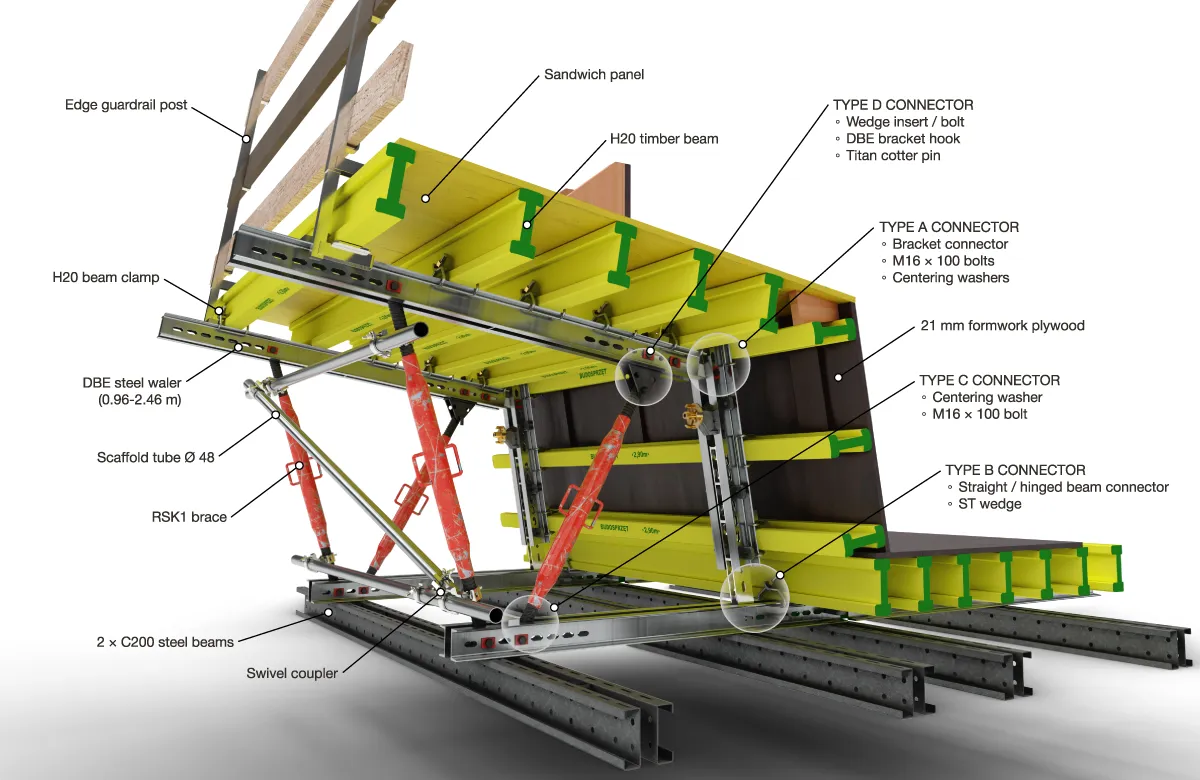

System elements

Basic elements:

  • beams,
  • connectors,
  • struts.

Additional elements:

  • support brackets,
  • tensioner,
  • cross shims,
  • bolts,
  • pivots,
  • sleeves,
  • walk way bracket adapters,
  • tie rod,
  • beams,
  • H20 timber bean clamps.
